FINETECH(TW)
Product:
50mm Vacuum Pump Filters (type3)
Product No.:
SP2501
Spec-1:
Housing material:PC
Spec-2:
Pore Size:0.2um
Spec-3:
Outer Diameter : 65mm
Spec-4:
Membrane Diameter : 55mm
Maker:
FINETECH(TW)
Supplier:
SINOPRO-The Exclusive Agency In Korea

◆ Air/Vent Filter - Vacuum Pump  Filters (type3)

► Specifications : 50mm

► Model : PTFE050N022O-PC(type3)
► Filter : PTFE
► Material : PC
► Flow direction : single direction
► Pore Size : 0.2um
► Sterilization method : E.O sterilization
► Packing : 12pcs / bag



◆ Product Description

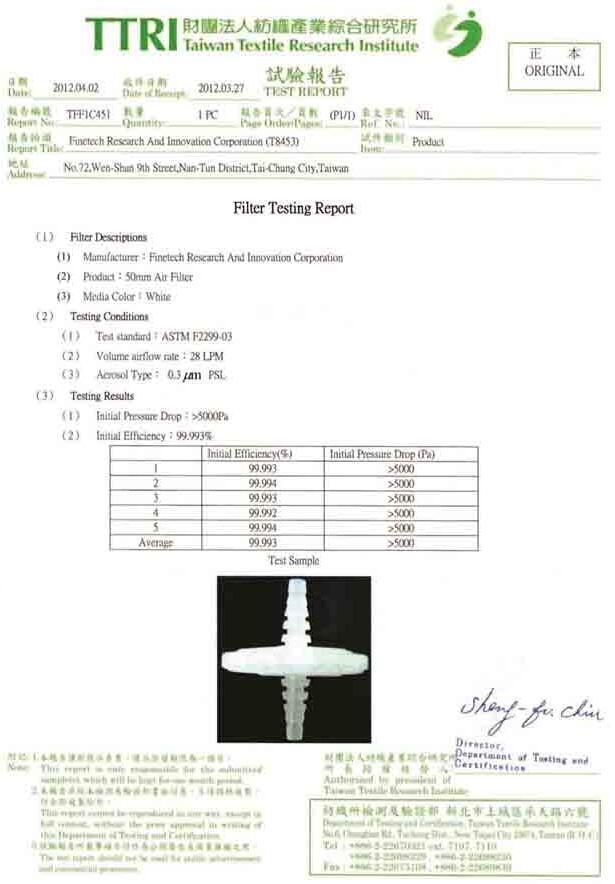

1. PASS HEPA TEST
2. ¼” Hosebarb x ¼” Hosebarb
3. High flow rates at low differential pressures
4. Rugged PC housing withstands high temperatures, pressures and aggressive solvents
5. High particulate-loading capability to maintain flow rates over extended periods
6. Manufactured in clean room under controlled Conditions
7. Autoclave
8. Accept ID 7-13 mm tubing
9. It is specially fit for aseptic ventilation of small size fermentor and culture mdium tank.





◆ Application

► Reach to Hepa level.Filtarion efficiency: >99.99%
► Apply for 7-13mm tube.
► Application:
(1) Autoclave Filters

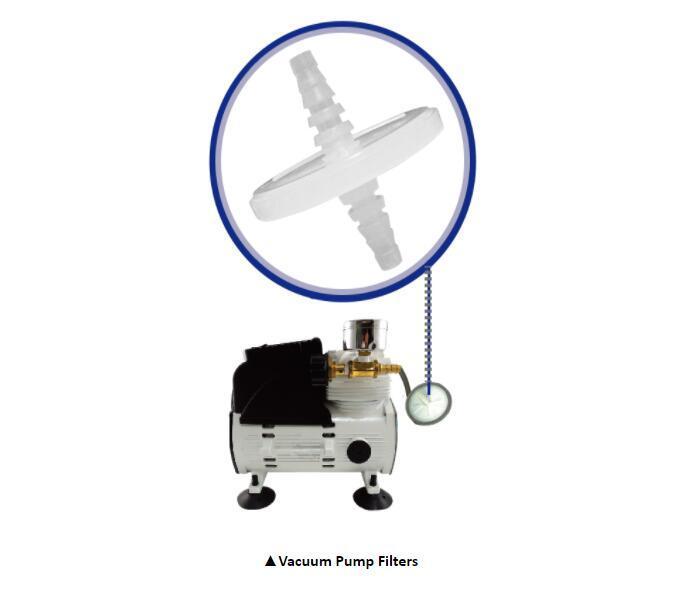

(2) Vacuum Pump Filters (pumpgard)
(3) Gas Analyser Filters
(4) CO₂ Incubator Filters
(5) small fermentation tank air filtration
(6) Online air filter

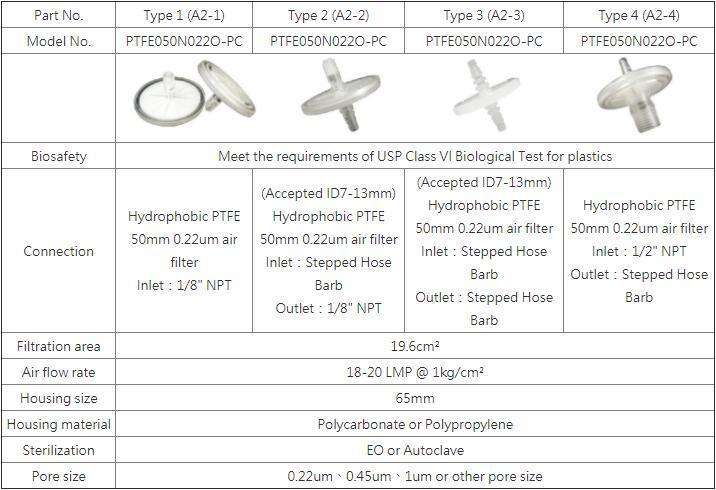

◆ Specification
