Product:

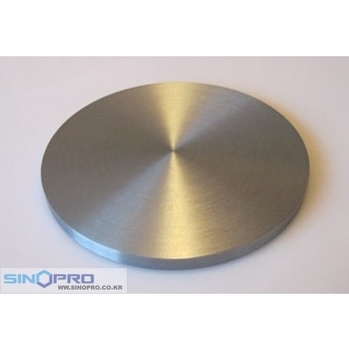

Vanadium Sputtering Target
Product No.:
SP1097
Element:
V
Purity:
2N5,3N
Shape:
Planar target, Rotary target
Maker:
XINK(CN)
Supplier:
SINOPRO-The Exclusive Agency In Korea

Products Process

Product Introduction:

Vanadium is a chemical element with symbol V and atomic number 23. It is a hard, silvery-grey, ductile, malleable transition metal. The elemental metal is rarely found in nature, but once isolated artificially, the formation of an oxide layer (passivation) somewhat stabilizes the free metal against further oxidation.Vanadium is electrically conductive and thermally insulating, and it’s harder than most metals and steel. It has good resistance to corrosion and it is stable against alkalis and sulfuric and hydrochloric acids. It is oxidized in air at about 933 K(660 °C, 1220 °F), although an oxide passivation layer forms even at room temperature.



Vanadium Sputtering Target is produced by melting technology. Because vanadium oxide has very special optical and electric properties, it can be applied for Infrared intelligent window, electro-optic switch device, and as laser protection materials and stealth material. With up to 3N purity and special annealing treatment, uniform grain size as well as lower gas content, end user can obtain constant erosion rates and high pure and homogeneous thin film coating during PVD process.

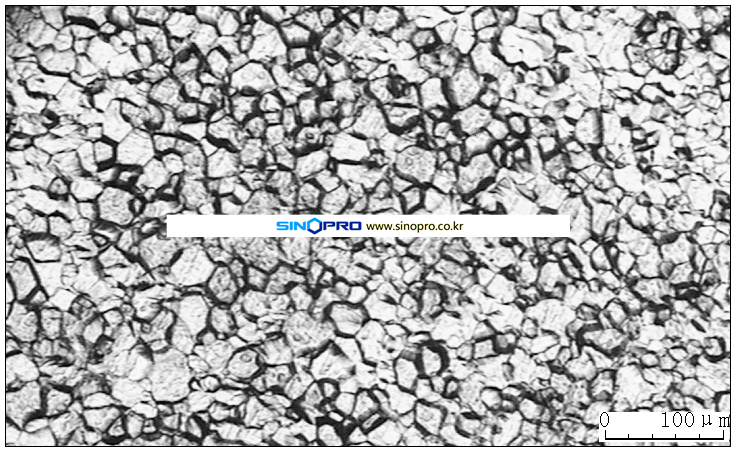

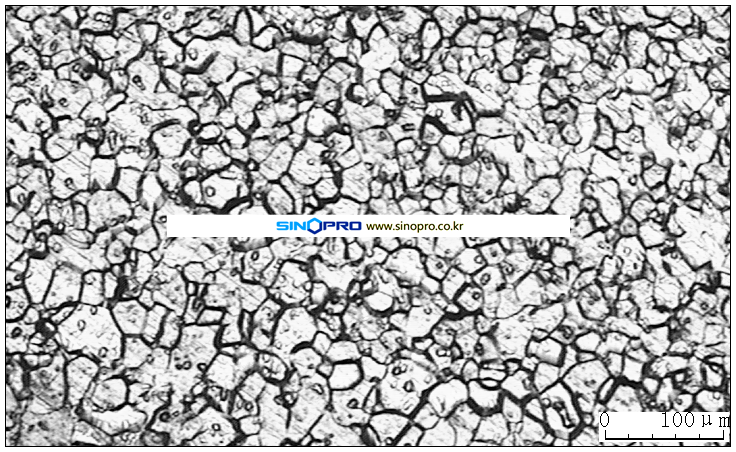

The picture below are two micrographs of our vanadium sputtering target, the average grain size<100μm.

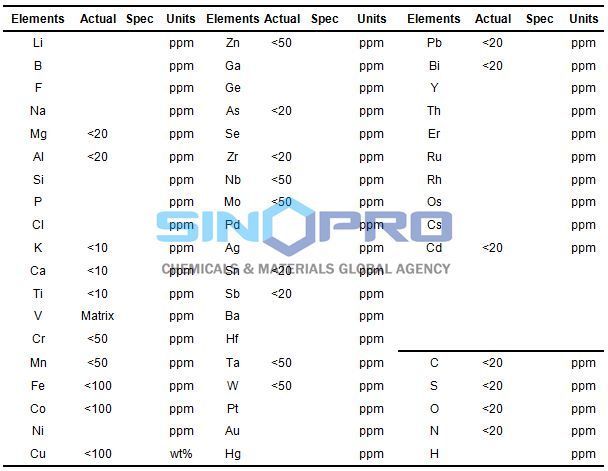

he sputtering targets we produced are high purity, it’s most important benefits are that your films possess an outstanding level of electrical conductivity and minimized particle formation during the PVD process. Below form is a typically Certificate of analysis for 3N high purity vanadium sputtering target.
Analytical Methods: 1. Metallic elements were analyzed using ICP-OES. 2. Gas elements were analyzed using LECO.
