Product:

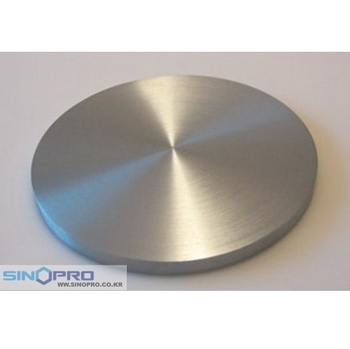

Titanium Sputtering Target
Product No.:
SP1106
Element:
Ti
Purity:
3N, 4N, 4N5, 5N
Shape:
Planar target, Rotary target
Maker:
XINK(CN)
Supplier:
SINOPRO-The Exclusive Agency In Korea

Products Process

 Product Introduction

As a metal, titanium is recognized for its high strength-to-weight ratio. It is a strong metal with low density that is quite ductile (especially in an oxygen-free environment), lustrous, and metallic-white in color. The relatively high melting point (more than 1,650 °C or 3,000 °F) makes it useful as a refractory metal. It is paramagnetic and has fairly low electrical and thermal conductivity.



Titanium sputtering targets and arc cathodes with Industrial grade are used for decorative coating to deposit  golden, yellow, and golden yellow color. With up to 99.7% purity, uniform grain size, lower gas content, end user can obtain good hardness, high brightness, corrosion and oxidation resistant color without discolor and tarnish for a very long time. We have been supplying Titanium Sputtering Target or Titanium arc cathodes for manufacturers of watch, sanitary ware, car mirrors, etc, which are suitable for various magnetron sputtering machines and ionic plating machines.



High purity Titanium Sputtering Targets with up to 99.999% pure are usually used for integrated circuit, DRAMS and flat panel display application. When LSI, VLSI, and ULSI line networks are sputtered with high-purity titanium, these integrated components can be made light, thin, small in size, and dense in wiring. High purity titanium target can also be used as barrier metal material



The flexibility of our production process allows to adjust the microstructure of our coating material to achieve your desired effect. If the grains of the sputtering target are uniformly aligned, the user can benefit from constant erosion rates and homogeneous layers. The picture below are two micrographs of our titanium sputtering target, the average grain size<20μm.

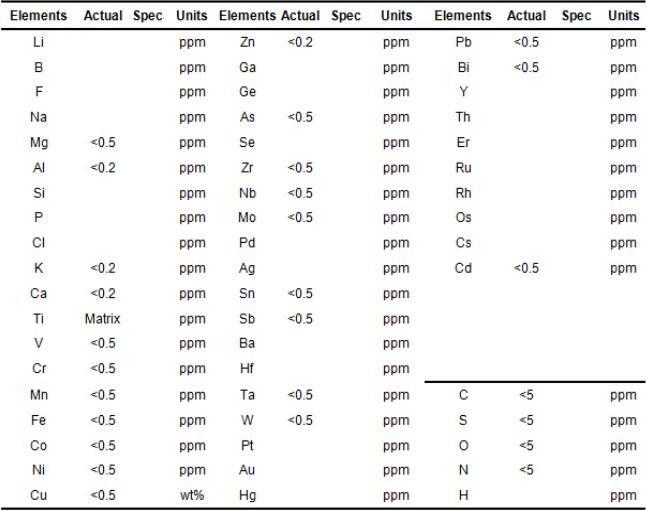

The sputtering targets we produced are high purity, it’s most important benefits are that your films possess an outstanding level of electrical conductivity and minimized particle formation during the PVD process. Below form is a typically Certificate of analysis for 4N5 high purity titanium sputtering target.
Analytical Methods: 1. Metallic elements were analyzed using GDMS. 2. Gas elements were analyzed using LECO.
