Product:
Beta Zeolite Molecular Sieve
Type:
Beta-25/30/50/B
Product No.:
SP1093
Package:
10kg and 25kg/Drum or in terms of customer's requirements.

About Beta Zeolite

Beta zeolite,having a unique three-dimensional 12-membered ring cross channel structure,is composed by mixing two polycrystals which are closely related to each other in the structure,and the two polycrystals are composed of the tetrahedral structure units which are symmetric based on the same center and arranged according to the layer.The two structures are composed of the tertiary structure units(TBU)which are symmetric based on the same center,wherein these TBUs are arranged in layer and subsequently connected in the form of left hand and right hand,This connection causes the twist along the channel of the direction C.

Beta zeolite shows an excellent catalytic performance in catalytic cracking,hydrocracking,hydroisomerization,hydrodewaxing,aromatics alkylation,olefin hydration,olefin etherification and other petroleum refining and petrochemical processes.

The varieties for the typical products of Beta Zeolite are listed as follows,and the other products of this series also can be produced according to the requirements of the user:

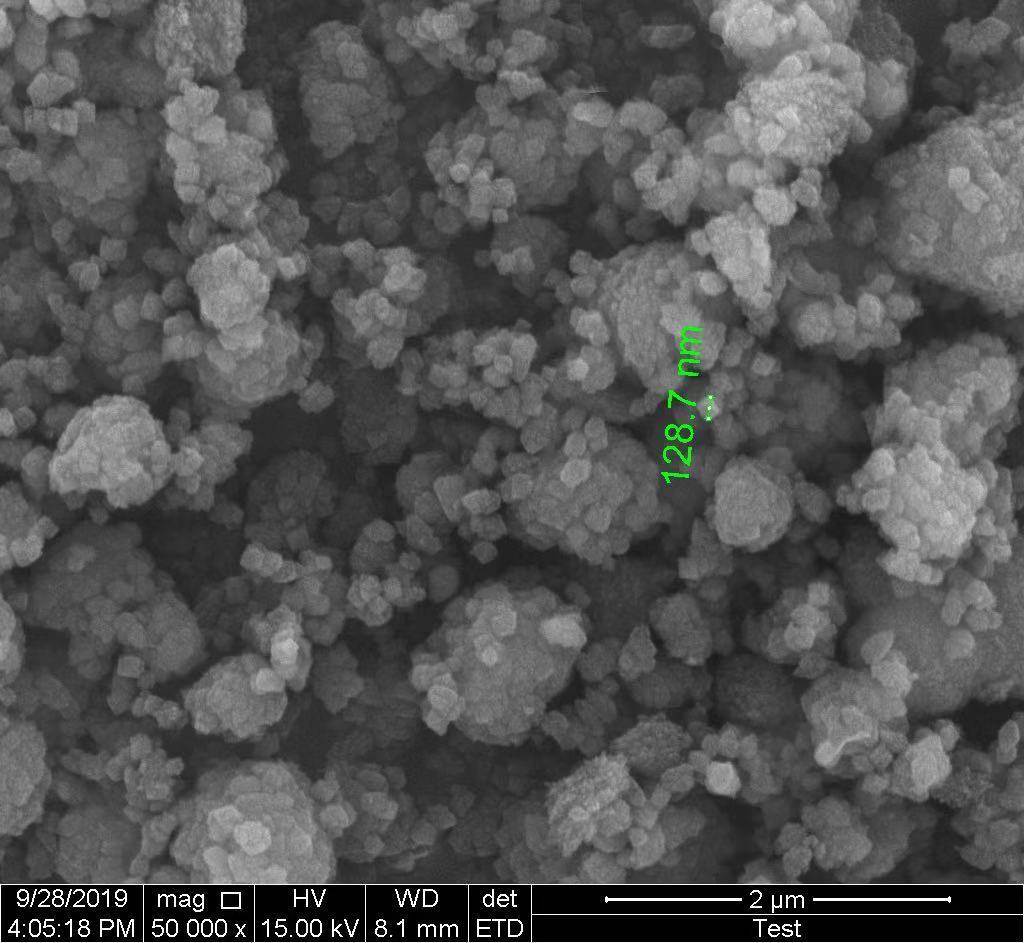

SEM Date of Crystal Size

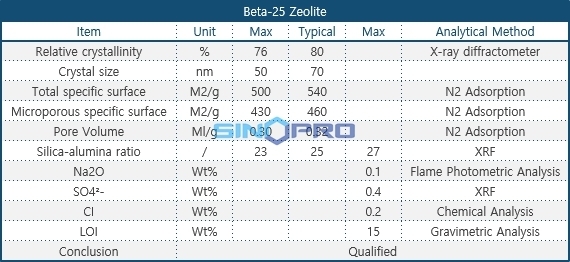

Description of Beta-25 Zeolite

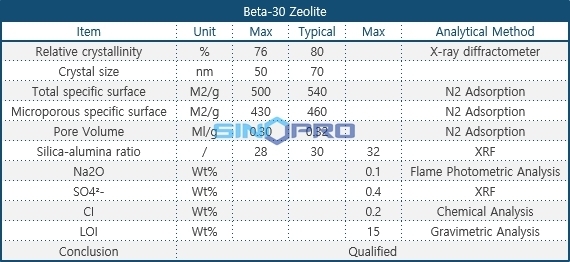

Description of Beta-30 Zeolite

The Beta zeolite produced by means of a template agent based hydrothermal crystallization method is featured with high relative crystallinity,wherein the relative crystallinity is no less than 80%,the SiO2/Al2O3 molar ration is no less than 27,and the Na2O is no more than 0.1%,and the BET specific surface is no less than 500m2/g

Description of Beta-50 Zeolite

The Beta zeolite produced by means of a template agent based hydrothermal crystallization method is featured with high relative crystallinity,wherein the relative crystallinity is no less than 80%,the SiO2/Al2O3 molar ration is no less than 50,and the Na2O is no more than 0.1%,and the BET specific surface is no less than 500m2/g.

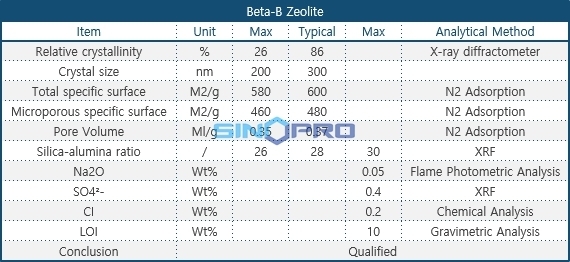

Description of Beta-B Zeolite

The Beta zeolite produced by means of a template agent based hydrothermal crystallization method is featured with high relative crystallinity ,wherein the relative crystallinity is no less than 80%,the SiO2/Al2O3 molar ration is no less than 25, the Na2O is no more than 0.1%,the BET specific surface is no less than 580m2/g,and the average grain size is 300nm.
