Description

2032 Coin Cell Parts are Through the selection of strict materials and high precision machining, reproducibility can be achieved.

Dimension

Cell 외부직경 : Approx. 20.25mm

Cell 외부높이 : Approx. 3.0~3.2mm

Cap 두께 : 0.25mm

Case 두께 : 0.25mm

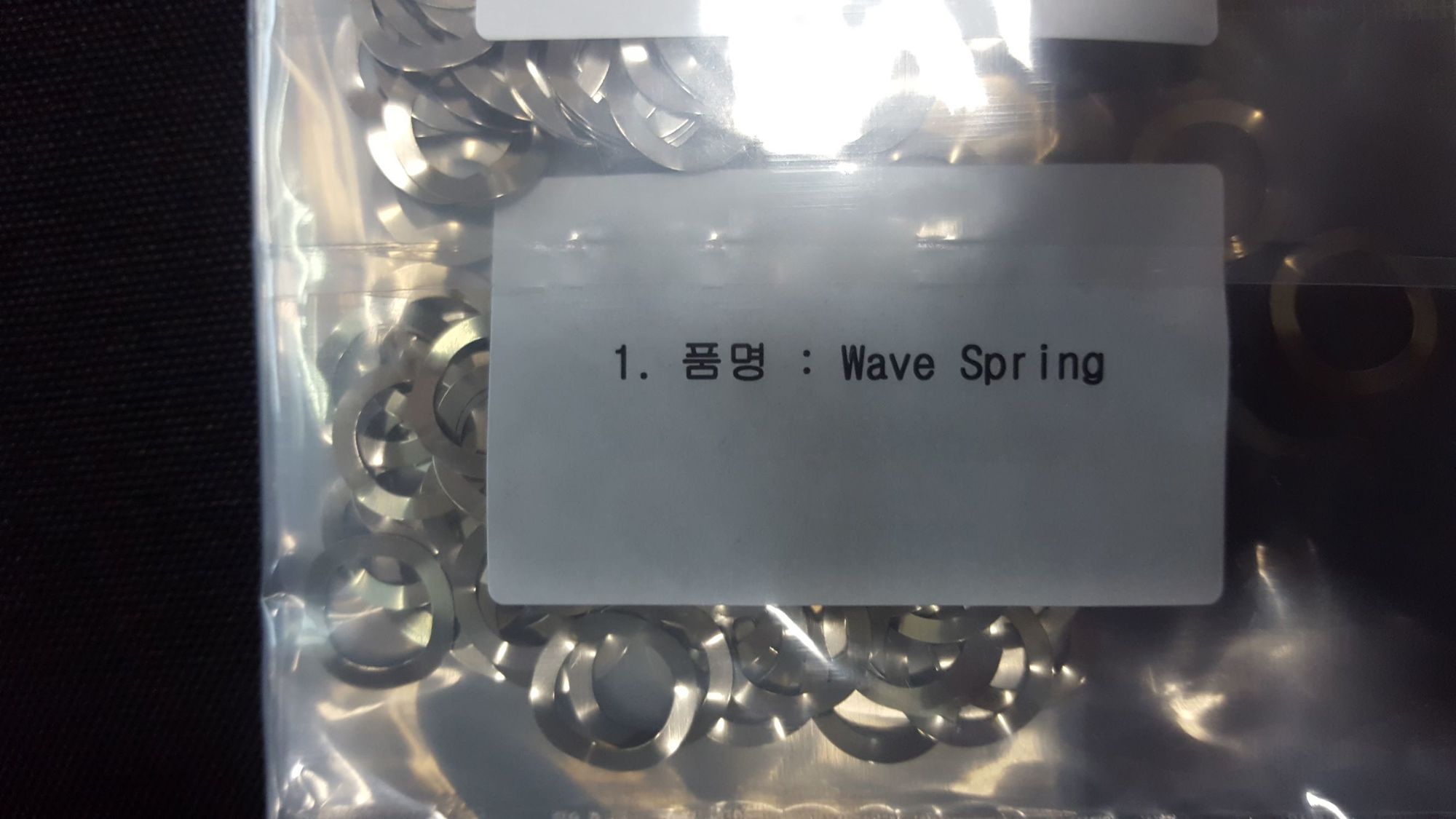

Spring : 0.25mm, OD15mm x 1.4mmH

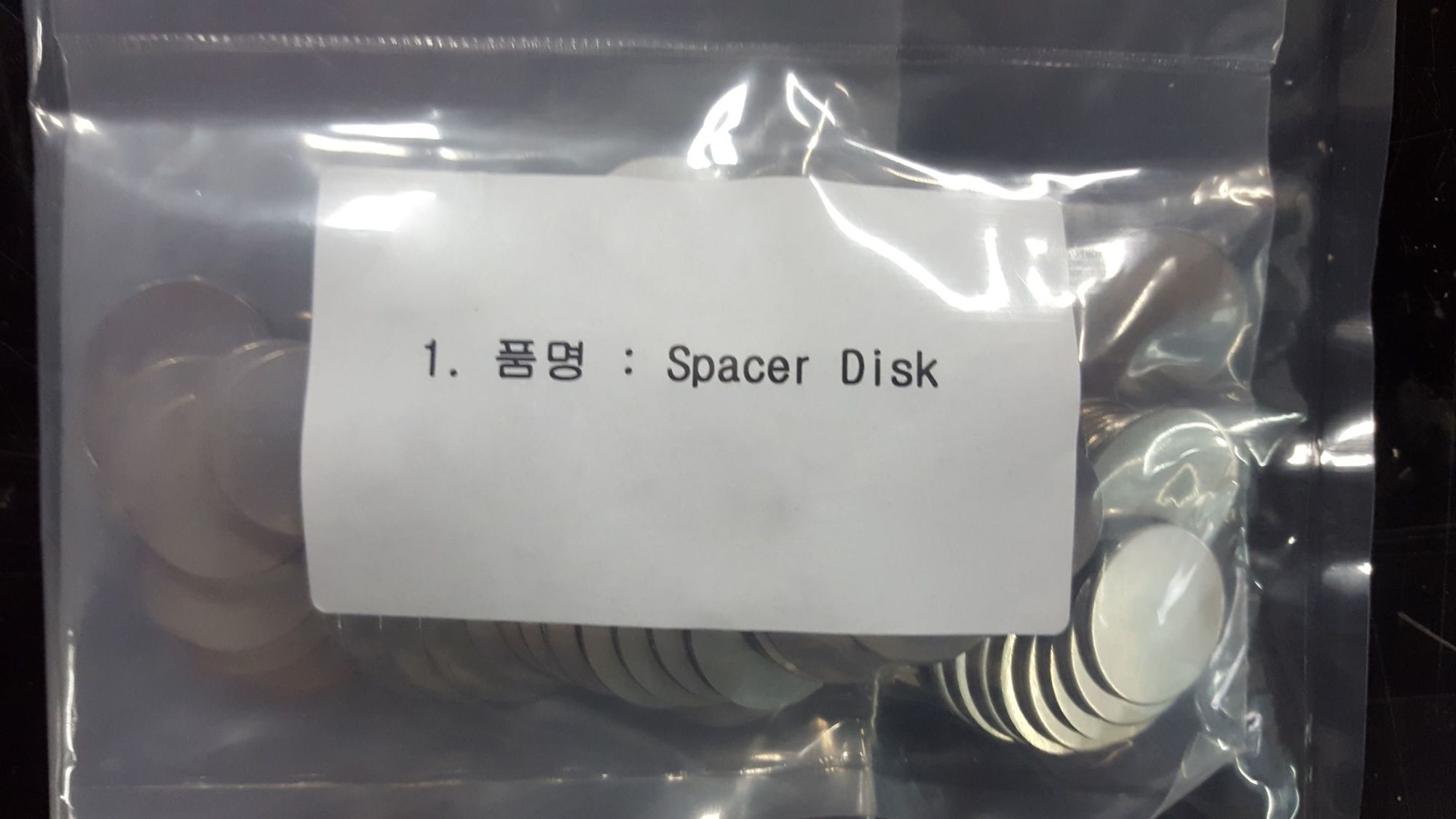

Spacer : OD15.5mm x 1.0mm（or 0.5mm）



Material

Cap : SUS316L

Case : SUS316L

Gasket : Polypropylene

Spring : SUS316L

Spacer: SUS316L

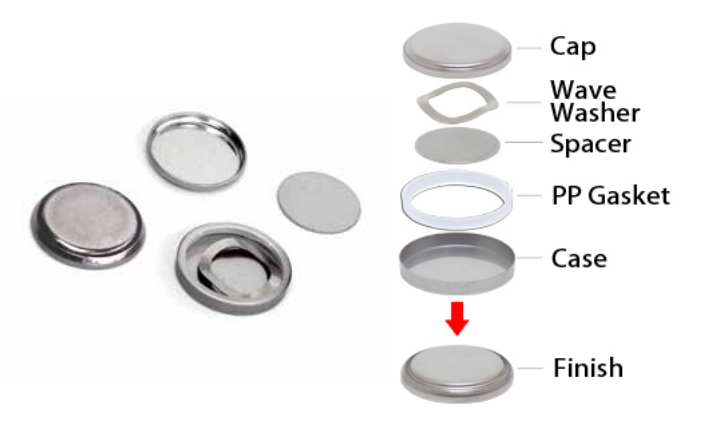

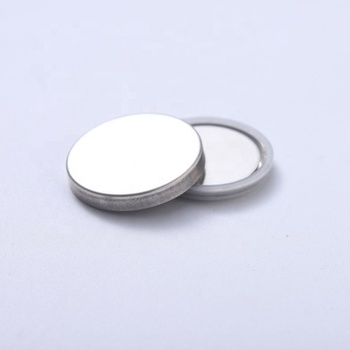

Products IMG
