Product:
Honeycomb Ceramic Monolith
Product No.:
SP1095
Material:
Cordierite|Alumina|Corundum|Mullite|Silicon Carbide|Zirconia
Maker:
KX(CN)
Supplier:
SINOPRO-The Agent In Korea

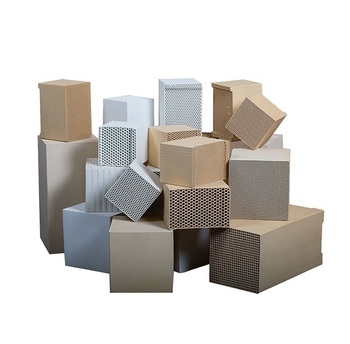

HONEYCOMB CERAMIC MONOLITH

Cordierite | Alumina | Corundum | Mullite | Silicon Carbide | Zirconia

Heat Storage  &  Exchange, Catalyst Carrier, Gaseous Emissions Control,

Chemical Packing

Application: RTO & RCO, Metal Casting,Scrubber,  Packing Tower

For years, we have been fulfilling the honeycomb ceramic needs of European, American and Chinese customers. These products specifically apply to regenerative thermal oxidizer (RTO), regenerative catalytic oxidizer (RCO), and metal melting furnace. This includes heat exchange and heat storage of industrial furnaces and the collection and purification of gas and dust. The packing tower and catalyst carrier aids in both absorption and conversion.

We customize all products and materials to individual customer needs and specifications.

150x150x300x(40x40) Cellular Honeycomb Ceramic Monolith

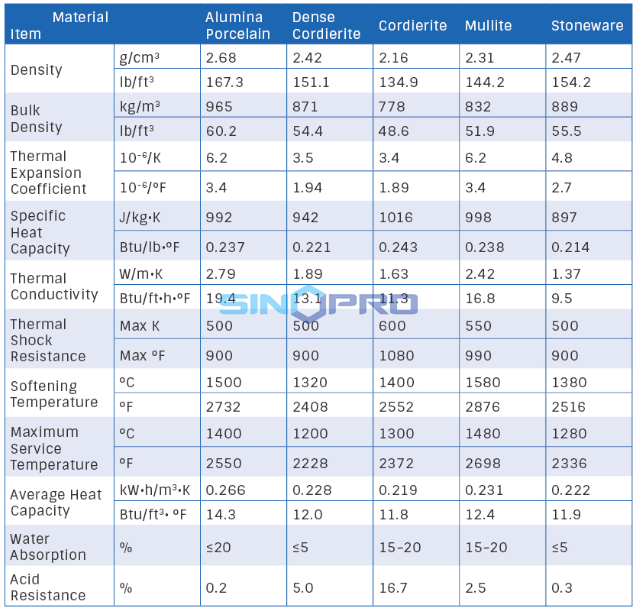

Physical Performance

Specifications
• Overall Dimensions – 150 x 150 x 300mm / 5.9 x 5.9 x 11.81 in
• Number of Cells – 40 x 40 = 1600
• Cell Width – 3.0 mm / 0.119 in
• Wall Thickness – 0.7 mm / 0.028 in
• Specific Surface Area – 825 m²/m³ / 251.4 ft²/ft³
• Void Fraction - 64%

150x150x300x(50x50) Cellular Honeycomb Ceramic Monolith​​

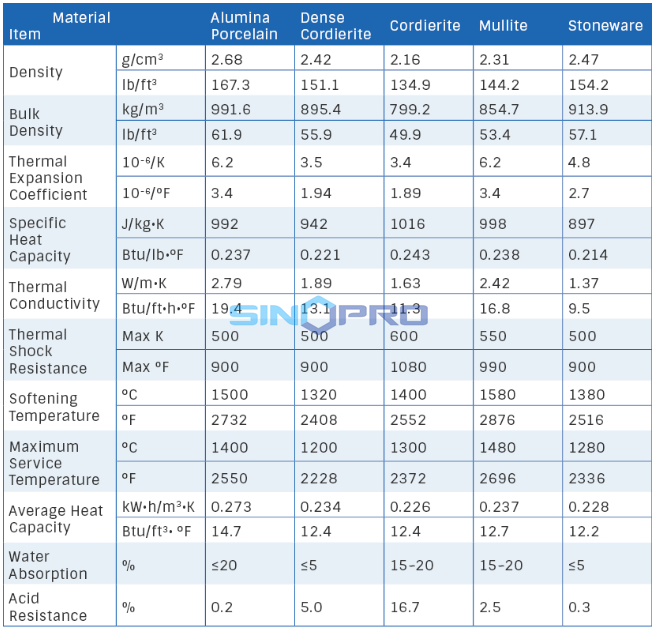

Physical Performance

Specifications
• Overall Dimensions – 150 x 150 x 300mm / 5.9 x 5.9 x 11.81 in
• Number of Cells – 40 x 40 = 1600
• Cell Width – 3.0 mm / 0.119 in
• Wall Thickness – 0.7 mm / 0.028 in
• Specific Surface Area – 825 m²/m³ / 251.4 ft²/ft³
• Void Fraction - 64%

150x150x300x(60x60) ​Cellular Honeycomb Ceramic Monolith

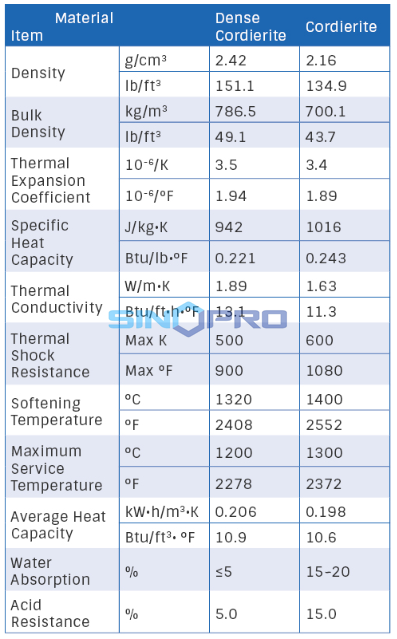

Physical Performance​

Specifications
• Overall Dimensions – 150 x 150 x 300mm / 5.9 x 5.9 x 11.81 in
• Number of Cells – 60 x 60 = 3600
• Cell Width – 2.0 mm / 0.079 in
• Wall Thickness – 0.45 mm / 0.018 in
• Specific Surface Area – 1310

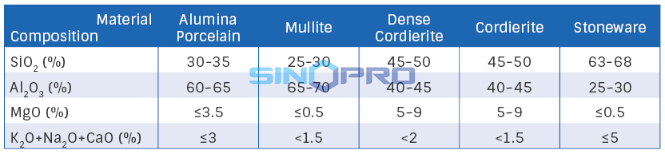

Chemical Composition

Please note: Preceding chemical composition is standard to all cellular honeycomb ceramics

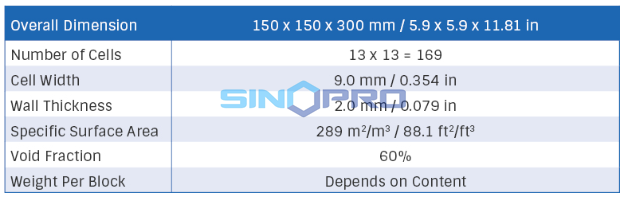

150x150x300x(13x13) Cellular Honeycomb Ceramic Monolith
Specifications

150x150x300x(25x25) Cellular Honeycomb Ceramic Monolith​​​
Specifications

150x150x300x(32x32) Cellular Honeycomb Ceramic Monolith
Specifications

150x150x300x(37x37) Cellular Honeycomb Ceramic Monolith​​​
Specifications

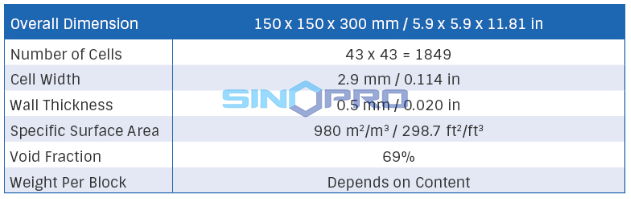

150x150x300x(43x43) Cellular Honeycomb Ceramic Monolith​​​
Specifications

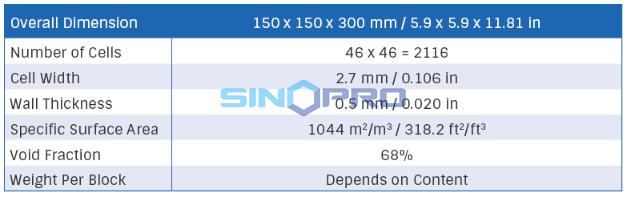

150x150x300x(46x46) Cellular Honeycomb Ceramic Monolith​​​
Specifications

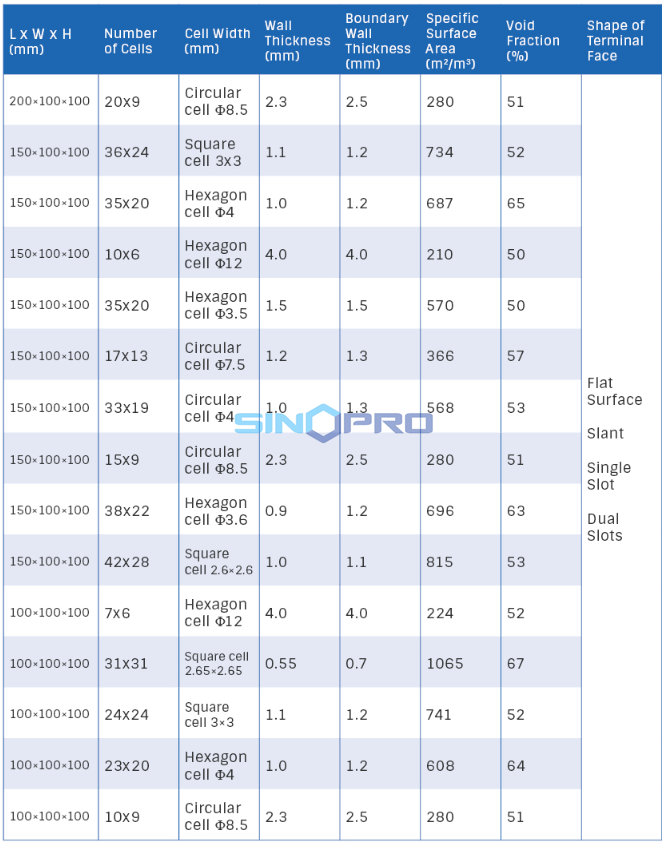

Featured Sizes
Specifications

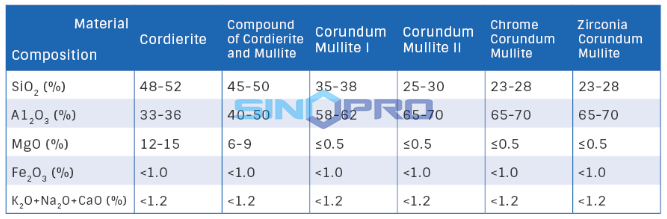

Chemical Composition

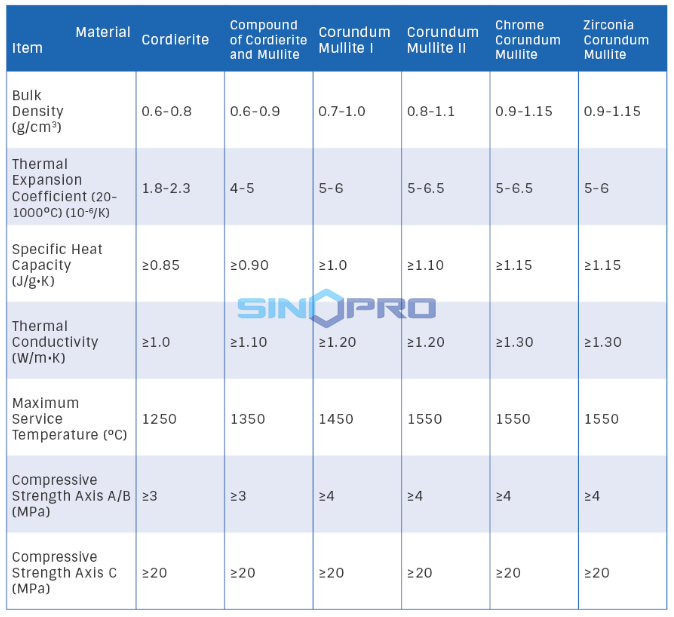

Physical Performance
