Product:

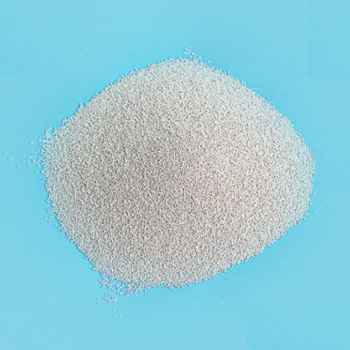

13X-HP Molecular sieve
Product No.:
SP1213
Package:
25Kg/Drum or in terms of customer's requirements.

Physicochemical Properties

13x-hp molecular sieve is specially developed for the production of oxygen on site under the condition of overpressure PSA process. In this process, hp-pso2 molecular sieve can selectively adsorb nitrogen to produce oxygen.

Principle of molecular sieve oxygen production: PSA oxygen production by molecular sieve pressure swing adsorption takes ambient air as raw material. Under the condition of normal temperature and low pressure, the adsorption capacity of nitrogen (adsorbate) in air increases when molecular sieve is pressurized, and decreases when molecular sieve is depressurized, forming a rapid cycle process of pressurized adsorption and depressurized desorption, so that oxygen and nitrogen in air can be separated The carbon dioxide, gaseous acid and other gaseous oxides in the air belong to the substances with strong molecular polarity, and it is difficult to pass through the molecular sieve, so that the purity of oxygen produced can reach more than 90% v / V). Because the principle of medical oxygen generator is based on air, oxygen can be produced only where there is air.







Specification



ITEM

SPECIFICATION

RESULT

Model

13X-HP

Confirmed

SiO2(%)

39.79

Confirmed

Fe2O3(%)

0.51

Confirmed

Al2O3(%)

24.92

Confirmed

CaO(%)

1.15

Confirmed

MgO(%)

1.71

Confirmed

TiO2(%)

0.01

Confirmed

K2O(%)

0.18

Confirmed

Na2O(%)

11.89

Confirmed

Size ratio up to grade(%)

96.8

Confirmed

Bulk density(G/ML)

0.66

Confirmed

Crushing strength(LBS)

8

Confirmed

Static H2O adsorption(WT%)

29.96

Confirmed

Static CO2 adsorption(WT%)

20.18

Confirmed

Water content(WT%)

1.35

Confirmed





Applications and Usages

It is used in purification of feed gas and PSA oxygen production process of large air separation unit in industry.
