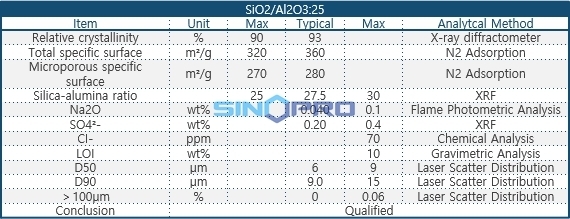

Description of ZSM-5 Zeolite(SiO2/Al2O3: 25)

The ZSM-5 type zeolite produced by means of a template agent free hydrothermal crystallization method is featured with high relative crystallinity,wherein the relative crystallinity is no less than 90%,the SiO2/Al2O3 molar ration is no less than 25,and the Na2O is no more than 0.1%.

Specification

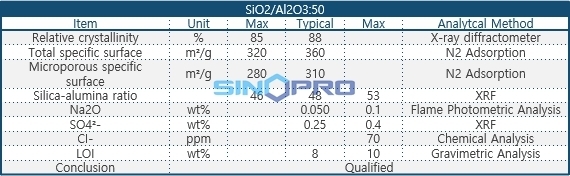

Description of ZSM-5 Zeolite(SiO2/Al2O3: 50)

The ZSM-5 type zeolite produced by means of a template agent free hydrothermal crystallization method is featured with high relative crystallinity,wherein the relative crystallinity is no less than 90%,the SiO2/Al2O3 molar ration is no less than 25,and the Na2O is no more than 0.1%.

Specification



---

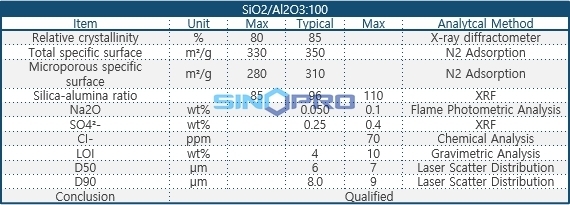

Description of ZSM-5 Zeolite(SiO2/Al2O3: 100)

The ZSM-5 type zeolite produced by means of a template agent based hydrothermal crystallization method is featured with small-sized crystalline grain,wherein the relative crystallinity is no less than 80%,the SiO2/Al2O3 molar ratio is no less than 25,the Na2O is no more than 0.1%.and the average grain size is 100nm.

Specification



---

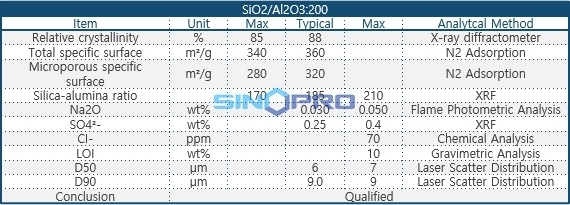

Description of ZSM-5 Zeolite(SiO2/Al2O3: 200)

The ZSM-5 type zeolite produced by means of a template agent based hydrothermal crystallization method is featured with high relative crystallinity,wherein the relative crystallinity is no less than 80%,the SiO2/Al2O3 molar ratio is no less than 30,the Na2O is no more than 0.1%.and the average grain size is 300nm.

Specification



---

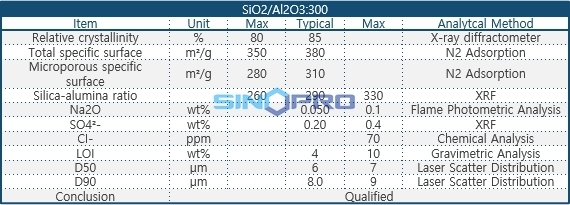

Description of ZSM-5 Zeolite(SiO2/Al2O3: 300)

The ZSM-5 type zeolite produced by means of a template agent based hydrothermal crystallization method is featured with high relative crystallinity and high silica -alumina ratio,wherein the relative crystallinity is no less than 85%,the SiO2/Al2O3 molar ration is no less than 300,the Na2O is no more than 0.1%,and the average grain size is 300nm.

Specification
