NEPEM® PFSA N-211 and N-212 membranes are non-reinforced films based on PFSA polymer, a perfluorosulfonic acid/PTFE copolymer in the acid (H+) form. NEPEM® PFSA membranes perform as a solid polymer electrolyte in fuel cells and other applications in electrochemistry and separation technology for a variety of electrochemical process.The membranes are located between the cathode and anode and transports protons formed near the catalyst at the hydrogen electrode to the oxygen electrode thereby allowing the current to be drawn from the cell. The membranes show significant improvements in features such as better resistance to chemical attack and longer operating durability in fuel cells.
The membrane is typically positioned on a coversheet. This composite membrane is wound on a plastic core, with the coversheet on the core-side, as shown in Figure 1. A 15.24cm ID plastic roll core is standard.

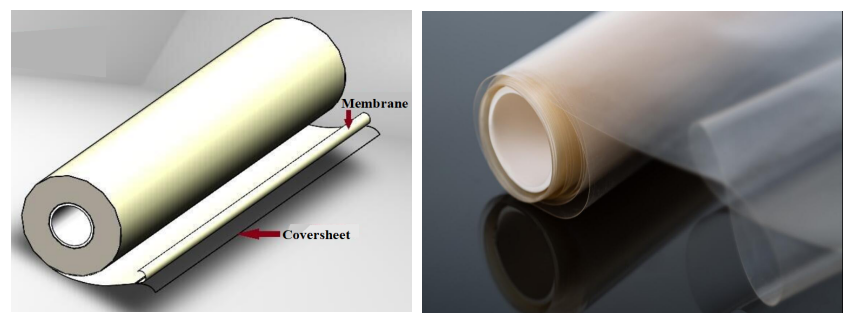

FIGURE 1: NEPEM® PFSA N-211/212 Series membrane Roll Schematic Diagram
The membrane combined with the coversheet eliminates rapid changes in the membrane’s water content, and stabilizes the dimensions of the membrane when removed from the roll.
Order and Packaging Information
NEPEM® PFSA membranes are available in two thickness values: N-211and N-212.
The standard product specifications for membrane pieces include:
▲Width: 0.30 m (min.) to 1.00 m (max.)
▲Length: 0.30 m (min.) to 1.00 m (max.)
The membrane for cut pieces will depend on the size and quantity of the customer’s order requirements. All the flatted membranes are shipped on a roll. Flat membranes are directly wound into a small roll. The membranes are protected with a polyethylene wrap and inner packaging, then placed in shipping hard cartons.
The standard product specifications for membrane rolls include:
▲Width: 610mm and 800mm standard widths; other widths are available from 200mm to 400mm in 100mm increments on special order.
▲Length: 100-meter standard roll length, other non-standard lengths are feasible to meet orders of the custome.
There is a 50 m2 minimum order requirement for non standard roll widths and lengths. Membrane pieces or rolls can be cut to non standard sizes, and special packaging provided at additional cost. Please contact our sales staff for details and availability.
Membrane dimensions are based on dry product conditioned at 23 °C and 50% relative humidity(RH) before cutting. The moisture content of the membranes will have an influence on their size changes including in the length, width, and thickness directions. Once the coversheet is removed, the membrane will adjust to the environment conditions. The membrane typically adheres to the coversheet, to the extent that it reduces the dimensions.
Table 1. Properties of NEPEM® PFSA membranes
Separating the Membrane from the Coversheet
▲Remove the plastic tape from the roll, as shown in the diagram.Adhesive tape applied to front side in the center of the roll.
▲The membrane shall be easily peeled off from the coversheet during this step. The coversheet is 125 micron polyester film.
▲The membrane shall be wound on the inside of the roll such that it is protected from contamination and physical damage during handling,storage,and shipping.
A self-adhesive product label is placed on the inside of the roll core and on the outside over-wrap of each roll. The label contain the following information: Membrane Type, Supplier Lot Number, Quantity.
Recommended Storage Conditions
Prior to opening the original shipping box, the membrane does not require environmentally controlled storage. Membrane should be kept sealed in its original packaging until needed. After opening the package, store the material in a temperature and humidity controlled environment(temperature 25.0±5.0°C and humidity 45±5.0%RH). Acclimatize the membrane to the manufacturing environment for at least 48 hours prior to use.
Once opened and exposed to the environment, the membrane will equilibrate to the ambient relative humidity, and change in dimensions accordingly.
Preferred disposal options are recycling and landfill. Incinerate only if incinerator is capable of scrubbing out hydrogen fluoride and other acidic combustion products. Treatment, storage, transportation, and disposal must be in accordance with applicable national laws and regulations.
