Product:

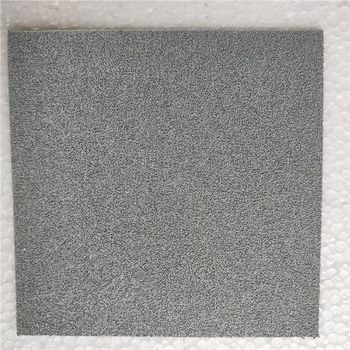

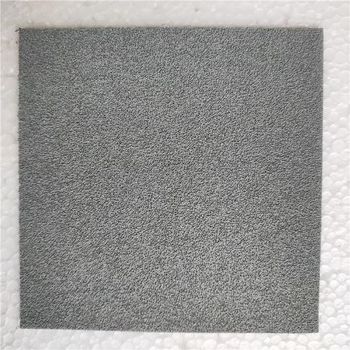

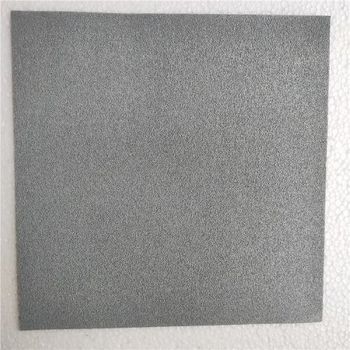

Iron Foam
Formula:
Fe
CAS No.:
7439-89-6
Product No.:
SP1257
Package:
In terms of customer's requirements.

Description

Sound absorption: the porous structure has the sound absorption characteristics of wide frequency.

Sound insulation: through additional treatment, a high noise interception can be achieved, and the sound insulation effect is good.

Electron wave shielding: About 90dB electron wave shielding.

Processability: can cut, bend and simply stick.

High temperature resistance above 1100 ℃, acid and alkali corrosion resistance, uniform pore structure, fast heating and heat transfer.

Fire resistance: keep stable shape, difficult to burn at high temperature, high temperature resistance.Strong thermal conductivity. Good permeability, filtration, gas and fluid flow stability.



Specification

ITEM

SPECIFICATION

Aperture

0.1mm-10mm

PPI

5-130ppi

Porosity

60%-98%

Through hole ratio

≥98%

Volume density

0.1-0.8g/cm³

Thickness(mm)

2.0-2.5-3.0-4.0-5.0-6.0-7.0-8.0-9.0-10-15-20-25-30-35-40-45

Width(mm)

500mm×500mm



Applications and Usages

It is used for carrier material of tail gas purifier, electrode material of battery, various catalyst carrier, especially for filter material with high temperature resistance and acid-base corrosion, surface material of infrared burner, heating material of various industrial and civil drying equipment, etc.
