Product:

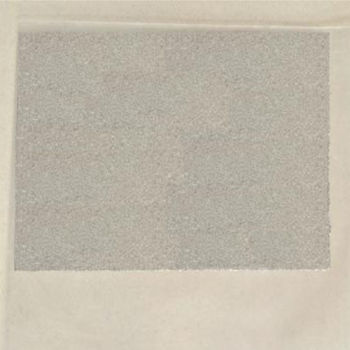

Titanium Foam
Formula:
Ti
CAS No.:
7440-32-6
Product No.:
SP1258
Package:
In terms of customer's requirements.

Description

Titanium foam (including tube and plate type) is made of high purity titanium powder, which is sintered by high temperature and high vacuum after sieving and cold isostatic pressing. Therefore, with its high-tech material composition and special molding process, titanium filter element has unique excellent performance: uniform structure, narrow pore size distribution and high separation efficiency. High porosity, low filtration resistance and high permeability. High temperature resistance can be used normally below 280 ℃. It has good chemical stability, acid and alkali corrosion resistance and oxidation resistance. No particle falling off, no secondary pollution of stock solution, in line with the requirements of food hygiene and pharmaceutical GMP. Good mechanical performance, filter can be pressed or pumped, and the operation is simple. Low pressure difference, small floor area and large flow. It has strong anti microbial ability and does not interact with microorganisms.



Specification

ITEM

SPECIFICATION

Filtration accuracy

0.45um-100um

Porosity

28-50%

Compressive strength

0.5-1.5Mpa

Temperature resistance

280℃(Wet state)

Thickness

1um,3um,5um,10um,20um,30um,50um,80um,100um

Width

(50-400)±0.5mm



Applications and Usages

Titanium filter element with its unique performance can be widely used in pharmaceutical industry, water treatment industry, food industry, bioengineering, chemical industry, petrochemical industry, metallurgical industry and gas purification field. It is a new material with wide development prospect.

Typical uses include:

1. Decarbonization filtration in infusion, small injection, eye drops and oral liquid preparation and security filtration before terminal filtration in dilute preparation in pharmaceutical industry.

2. Impurity removal filtration, decarburization filtration and fine filtration in the process of API production.

3. Ultrafiltration in water treatment industry, security filtration in RO and EDI systems, filtration after ozone sterilization and odor aeration.

4. clarification and filtration of beverages, Baijiu, beer, vegetable oil, mineral water, soy sauce and vinegar.

5. Decarburization filtration and precision filtration of liquid products, liquid raw materials and pharmaceutical intermediates in chemical industry, recovery of ultra-fine crystal, catalyst, precision filtration and system heat transfer oil after resin adsorption, impurity removal filtration of materials, purification of catalytic gas, etc.

6. Oilfield return water filtration, security filtration before reverse osmosis in seawater desalination field.

7. High temperature decarbonization and dislocated filtration in dyestuff industry.

8. Filtration of steam, compressed air and catalyst in gas purification.

9. As an electrolytic electrode, it can maximize the electrolysis area and improve the gas recovery speed.
