ITEM

SPECIFICATION

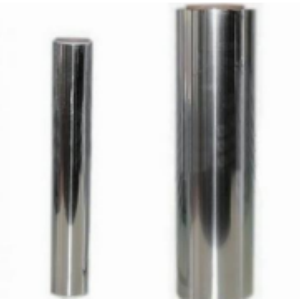

Aluminum Foil

T:16um, W:200mm, L: 200m， 2.5kg

Thickness

16±1um

Width

200mm

Length

≤260m

Areal density

42-46g/m2

With transverse surface density uniformity

≤0.003g/40×40mm

The same volume of vertica surface density uniformity

≤0.003g/40×40mm

High temperature oxidation resistance(200℃*30min)

No oxidation

Connect no

<2

Chemistry content(Al)

>99.45%

Extensibility

<0.5%

Normal temperature Tensile strength(kgf/mm2)

>180

After 1200C baking 1h,Tensile strength(kg/mm2)

>160
