Advanced Stainless-steel Filters & Membranes



Applied in filtration, dedusting and aeration industries of chemical, pharmacy, aerospace, military, etc. They are of high strength, weldable, nontoxic and corrosion-resistant, tolerating severe working environment. Treated easily against fouling, yielding a long operating life.

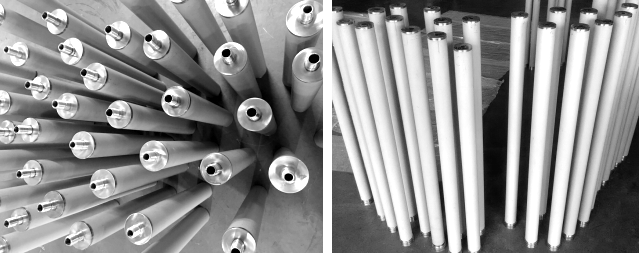

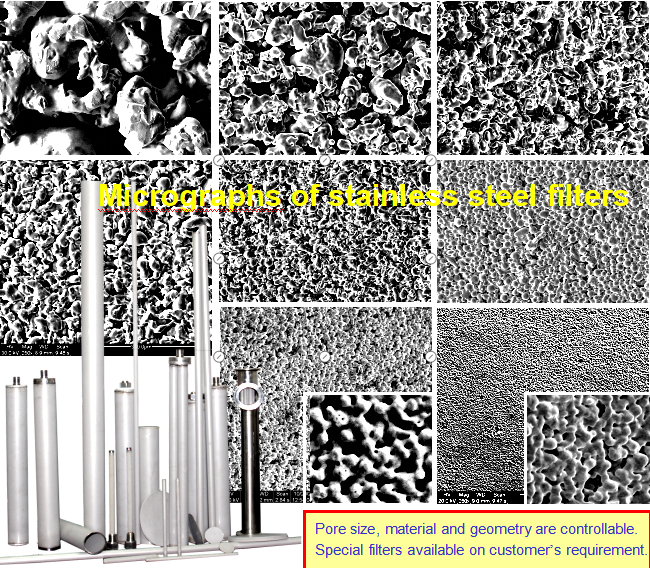

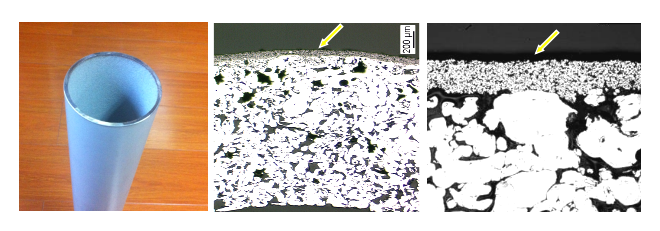

Asymmetric stainless steel membranes

Asymmetric stainless steel membranes comprise of a macroporous substrate and a thin microporous layer (thickness, 20~200m; pore size, 0.1~5 m), achieving a high filtration precision, a low diffusion resistance and an easy backwash.

Highly smooth membrane surface reduces contamination and can be a good supporting material.

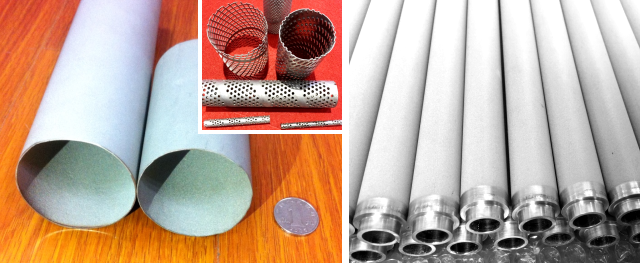

Thin-wall stainless steel membranes

Advantages: Light weight, low diffusion resistance, high filtration efficiency, and excellent fouling resistance. Superior to metallic wire meshes and mats in filtration precision. Their high efficiency and long life greatly reduce the operation cost in filtration industry.

(Thickness): 0.2~1 mm，(Pore size): 0.5~10 mm；

(Water flux): 20~100 m3/m2 h bar；(Gas flux): ? - ? m3/m2 h bar.

High surface smoothness helps filter cake removal.

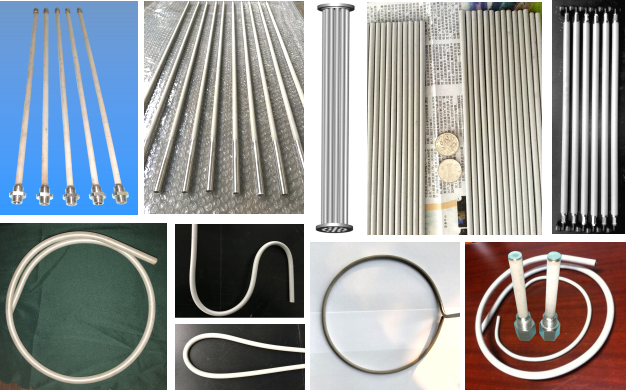

Slender stainless steel filters

Diameter down to 5 mm. Extremely high area/volume ratio. Highly efficient for cross-flow filtration. Bendable  to various shape. Bundle-type filters are ideal for various micro-systems.

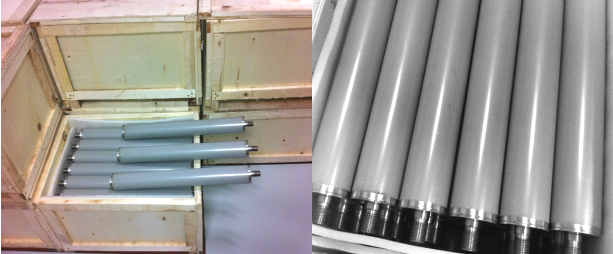

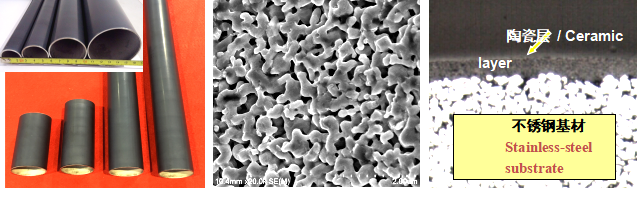

Ceramics/stainless-steel composite membranes

Comprising of a ceramic membrane on stainless-steel substrate. Integrating high filtration precision (~50 nm) and physical strength together. Membrane material: TiO2, Al2O3 and ZrO2 etc. Thickness: 100-200 mm. Can be ideal supporting materials for catalysts, sensors and radar, etc.

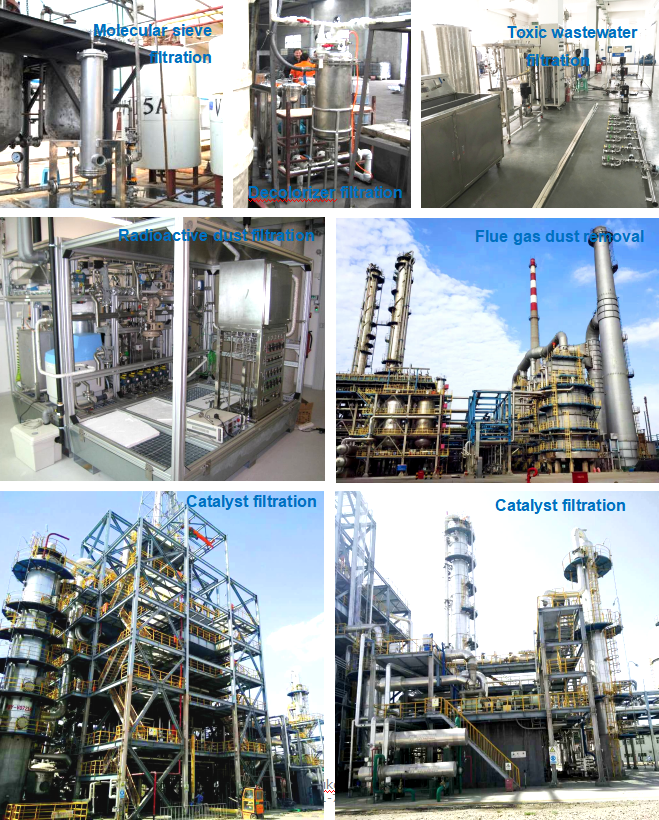

Filtration Equipments & Engineering



SINOPRO offers various engineering services from experimental design to complete plant systems. High-performance filtration materials, advanced filtration technologies as well as rich practical experiences awarded GaoQ a dominant market position, which also depends on our proprietary intellectual property rights and outstanding R&D capacity.

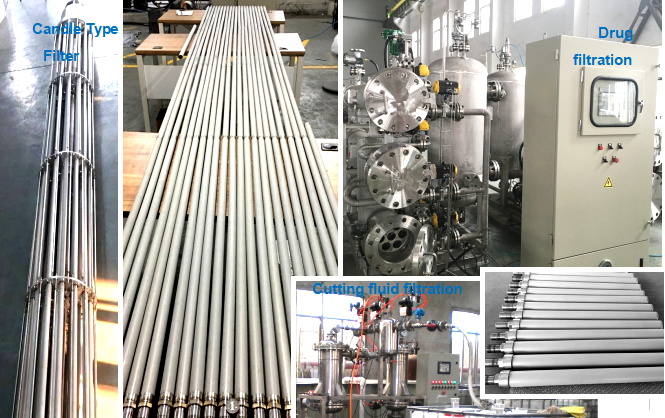

Candle filter

Catalyst filter, gas deduster, smog cleaner, radiogen separator, drug residual removal, substrate, military materials, etc.

Pd Membranes, H2 & Isotopes Purifiers and Hydrogen Energy

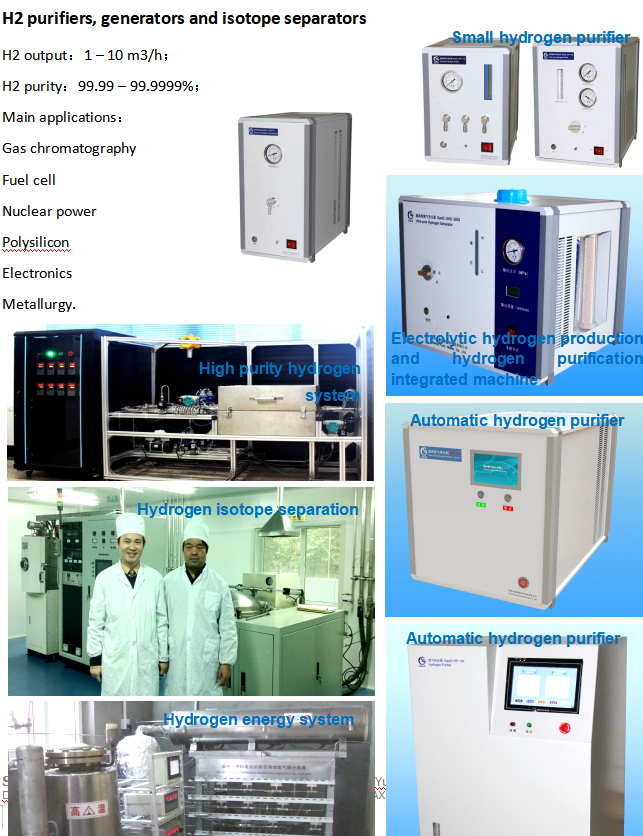

 Palladium membranes are exclusively permeable to hydrogen and its isotopes. GaoQ offers various hydrogen (isotopes) purifiers, ultra-pure hydrogen generators and on-site H2 producing membrane reactors.

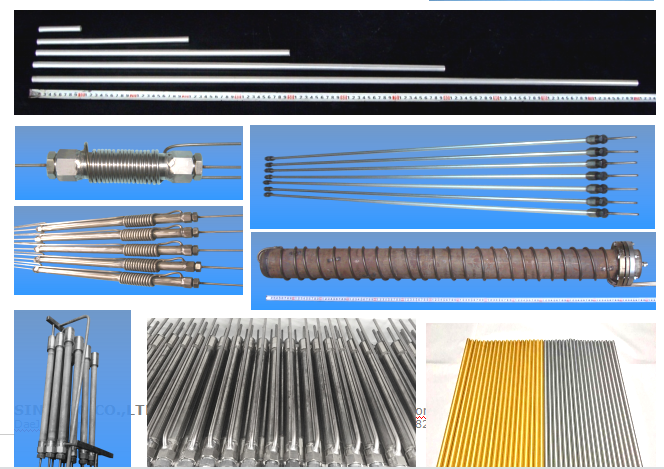

Pd Membranes & Modules

Membrane length：5 – 120 cm

Membrane outer diameter：3 – 25 mm

Membrane thickness：2 – 10 mm

Substrate：Porous ceramics or metal
