- Product

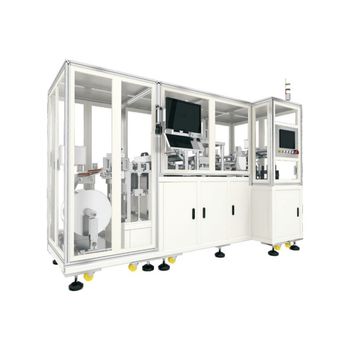

- Electrode Die Cutting Machine with continuous coating rolls
- Brand
- SINOPRO
Functions and features
• The equipment is mainly used for cutting and forming the continuous coating rolls of lithium ion batteries into anode &
• cathode electrode sheets.
• Optional configuration: CCD visual material with defect detection, defective product labeling detection, FFU clean air
dust removal system, non-contact dust removal
Technical Parameters
| Item | Common parameter |
| Output | ≥40PPM |
| Min cutting forming size | L G0 (include tab) x W 50mm |
| Burr | Horizontal, vertical ≤ 0.015mm |
| Electrode shape accuracy | ±0.2mm |
| Tab powder accuracy | ±0.4mm |
| Cutting Die life | ±0.4mm |
| Anode Die once life ≥ 1.2 million times, can be repaired 10 times, total life ≥ 12 million times | |
| EMS function | Cathode Die once life ≥ 0.8 million times, can be repaired 10 times, total life ≥8 million times |
| Action | It can dock with MES system |
| Qualification rate | 95% |
| Tab to electrode coating side edge accuracy | 98% |
