Product

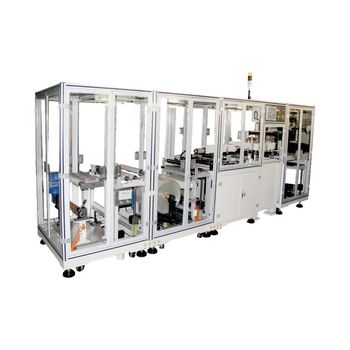

Auto Electrode Blanking Machine
Brand
SINOPRO

Functions and features
• This machine is suitable for automatic cutting forming of gap coating or continuous coating of lithium battery.
• Optional configuration: PET single release and single receipt, mechanical arm to receive material, labeling detection NG sorting, the use of the stacking machine for the material trough and the next process, mechanical arm to hold the feeding.


Technical Parameters

Item Common parameter
Output 20-40 times/min
the coming material of gap coating or continuous coating Compatible gap coating and continuous coating
Burr ≤0.03mm
knife mould life ≥25 thousand times
Max feeding Width 530mm
Knife mould type Blanking die
Max punching force ≥20T
Action 95%
Qualified rate 98%
