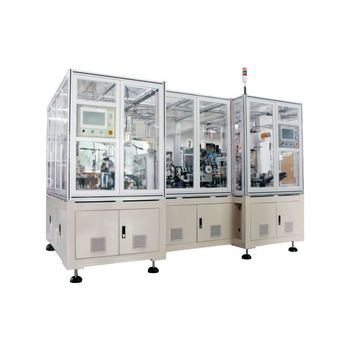

- Auto Z-stacking Machine
- Brand
- SINOPRO
Functions and features
• This device is suitable for z-shaped lamination of anode and cathode plates and separator of lithium ion battery cell. The anode is folded first (the same side or the opposite side of anode and cathode
ears). After lamination is completed, the separator is heated and side glue is attached.
• Optional configuration: pasting mode can be pasting side glue or flat glue, the end coil separator and the number of end coil coil can be set, the discharge of the cell can butt the whole line conveying
line, it can be upgraded to a cutting and folding machine, the end of the cell dust removal after the separator is cut.
Technical Parameters
| Item | 150 Type | 250 Type | 350 Type | 450 Type | 400 Type |
|---|---|---|---|---|---|
| Electrode location mode | Mechanical positioning | CCD Visual positioning | |||
| Single piece efficiency | 0.5–1 s/pcs | ||||
| Compatible electrode size (Length) | L70–150 mm | L150–250 mm | L200–350 mm | L300–450 mm | L450–600 mm |
| Compatible electrode size (Width) | L50–100 mm | L80–200 mm | L120–350 mm | L80–150 mm | L80–150 mm |
| Stacking table structure | Air Cylinder pressure claw | Cam press claw | Cam press claw | Air Cylinder pressure claw | Air Cylinder pressure claw |
| Ultrasonic & missing Angle detection | Standard | ||||
| Alignment of adjacent electrode | ≤ ±0.2 mm | ≤ ±0.3 mm | |||
| Overall alignment of electrode | ≤ ±0.4 mm | ≤ ±0.4 mm | |||
| Alignment between the electrode and the adjacent separator | ≤ ±0.5 mm | ≤ ±0.5 mm | |||
| Separator cut-off and reverse closure time | ≤ 12 s | ||||
| Dusting mode | The top of the equipment is equipped with FFU to remove dust | ||||
| Separator electrostat removal | Standard | ||||
| MES function | It can dock with MES system | ||||
